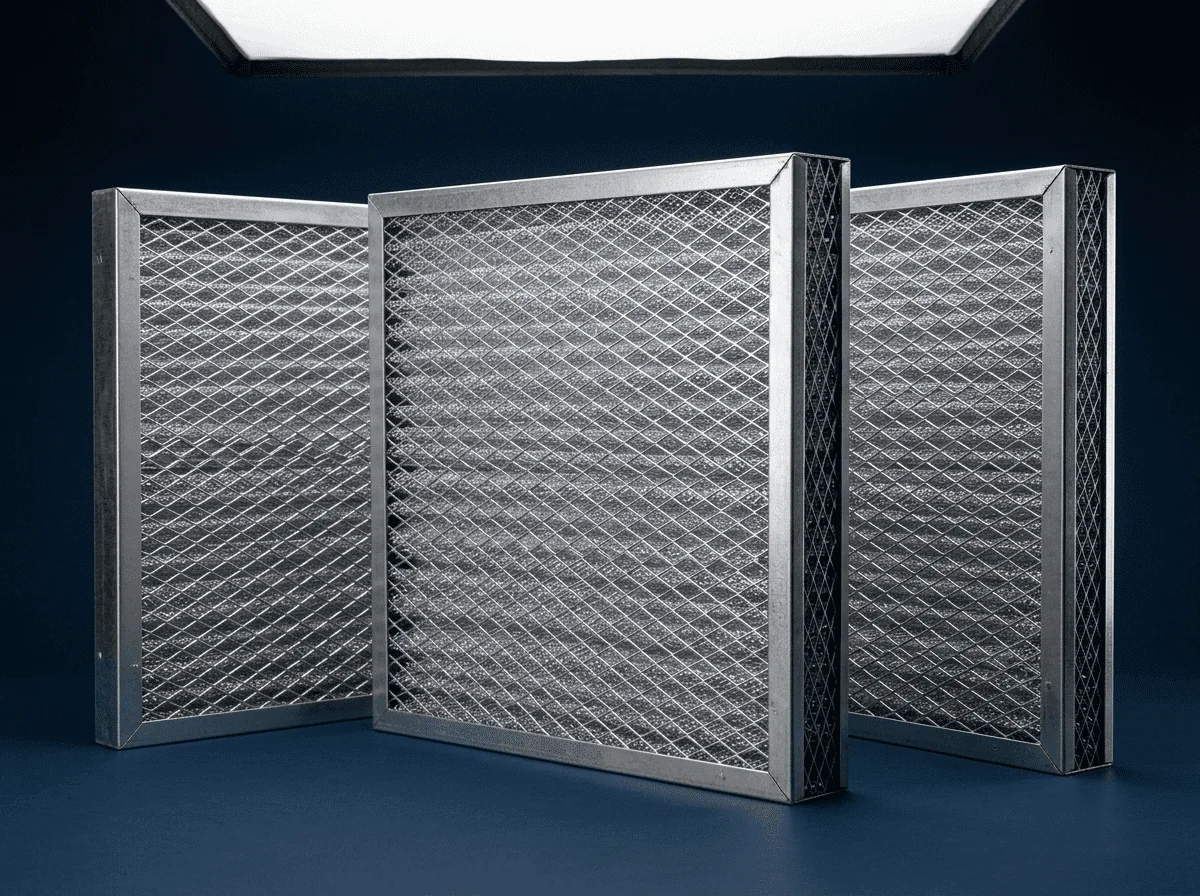

Aluminum Washable Filter

Filter media is built from slit and expanded corrugated aluminum mesh, supported by heavy gauge expanded grids on both sides for media protection. Media layers are supplied in single or dual ply to maximise filter surface while minimising pressure drop. Gradual resistance build-up in the media extends service life between cleanings; the all-aluminium construction is rust-proof, corrosion resistant and easily washable. Frame is GI as standard with optional stainless steel or aluminium; suitable for large-particle collection and pre-filtration duty. Standards & Certifications: SMACNA, DW 144, ASHRAE Typical Applications: AHUs, FAHUs, FCUs, HVAC fresh air intakes, large-particle pre-filtration, sand-laden and industrial dust environments Key Differentiators: single or dual ply corrugated aluminum media; washable and reusable; low initial pressure drop; gradual filter loading extends service life; optional GI / SS / aluminium frame Technical Data: aluminium mesh filter panels in single or dual ply with panel sizes up to 600x600 mm and bespoke sizes on request; free area and pressure drop selected per m3/h airflow; service temperature up to 70 C; frames GI/SS/Al in 20/30/40 mm profiles.
