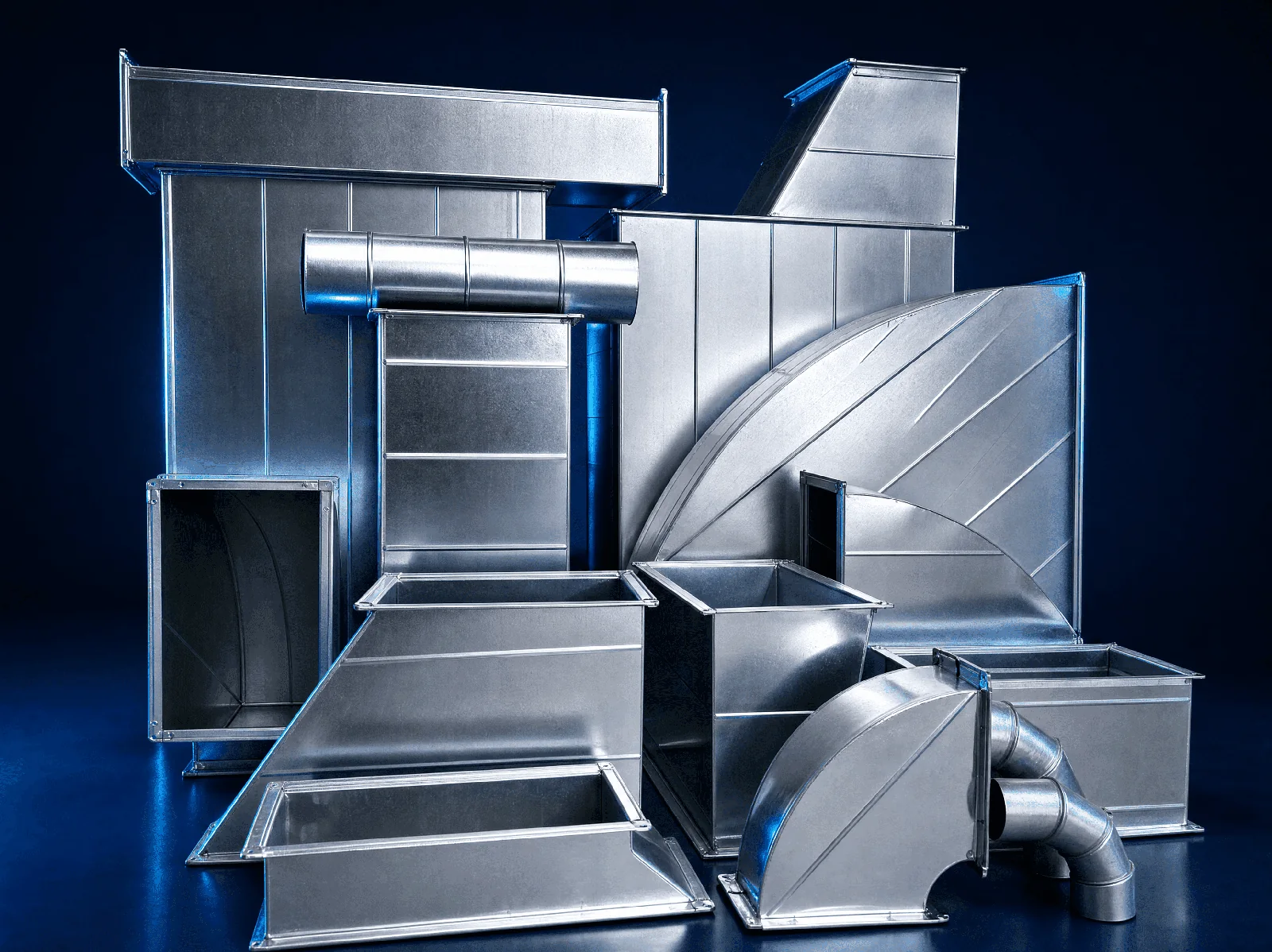

Galvanized Iron (GI) HVAC Ducts

Rectangular ducts are factory fabricated and assembled, ready for installation with a complete range of rectangular products and any duct size - no limitation to standard manufacturer sizes. Materials: galvanized steel (standard) LFQ complying with ASTM A653, G90 coating designation; stainless steel (optional) ASTM A240M/A480M grades 304/304L/316/316L; aluminium (optional) ASTM B209 alloy 3003 temper H14. Produced on an automatic CNC coil line (1.2 m straight duct standard lengths, 4 coils loaded at a time), CNC laser cutting and CAM DUCT software for fittings, and lock formers for mechanical longitudinal joints. GI sheets conform to ASTM A635/A653M LFQ with Z275/G90 zinc coating as standard (Z350/G115 available), thickness 26g-18ga; reinforcement with GI angle, slip-on flange, rolled steel angle, mid-panel tie rod and joint tie rod (10/12/16 mm). Transverse connections include drive cleats, self flange, slip-on flange, TDC, coupler and angle flange; straight ducts reinforced with panel beading every 300 mm. State-of-the-art identification system cross-references duct pieces to drawings for easy installation; factory sealant applied on longitudinal and transverse seams of flanged ducts for all pressure systems on request. Accessories: GI flanges, GI corners, GI clamps, GI cleats with S, C and standing S types, and the transverse joint / drive cleat system. Standards & Certifications: SMACNA, DW 144, ASTM A653, ASTM A635/A653M, ASTM A240M/A480M, ASTM B209, Z275/G90 Typical Applications: low, medium and high-pressure supply and return air systems, commercial and industrial HVAC plants, stairwell pressurisation, exhaust and fresh-air distribution, any custom duct size on project drawings Key Differentiators: unlimited custom sizes; CNC coil line, laser and plasma CAM DUCT fabrication; panel beading every 300 mm; cross-referenced identification system; flanged low-leak option with factory sealant; SMACNA / DW144 compliance
